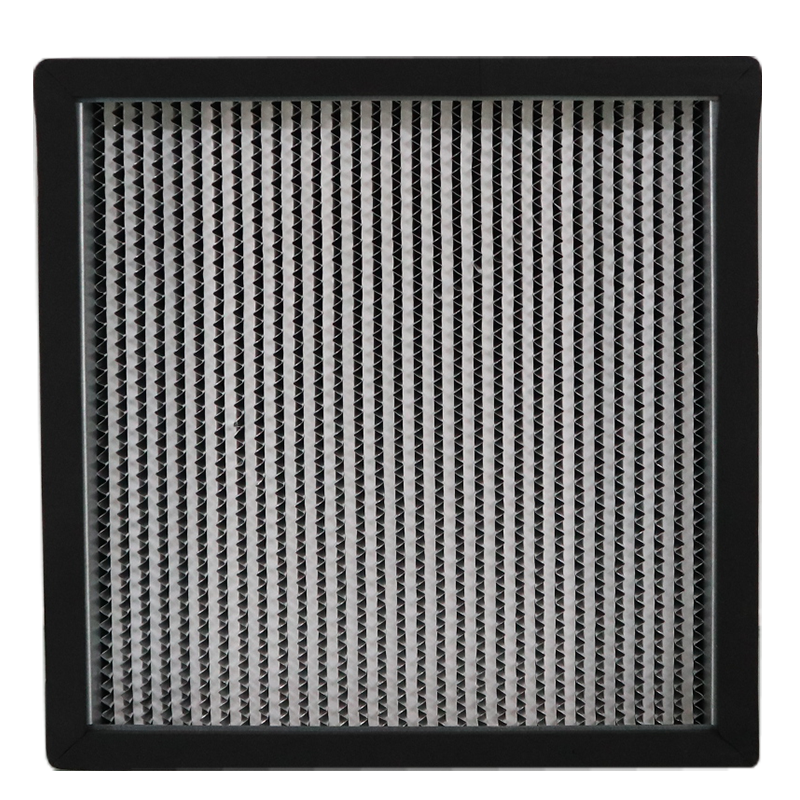

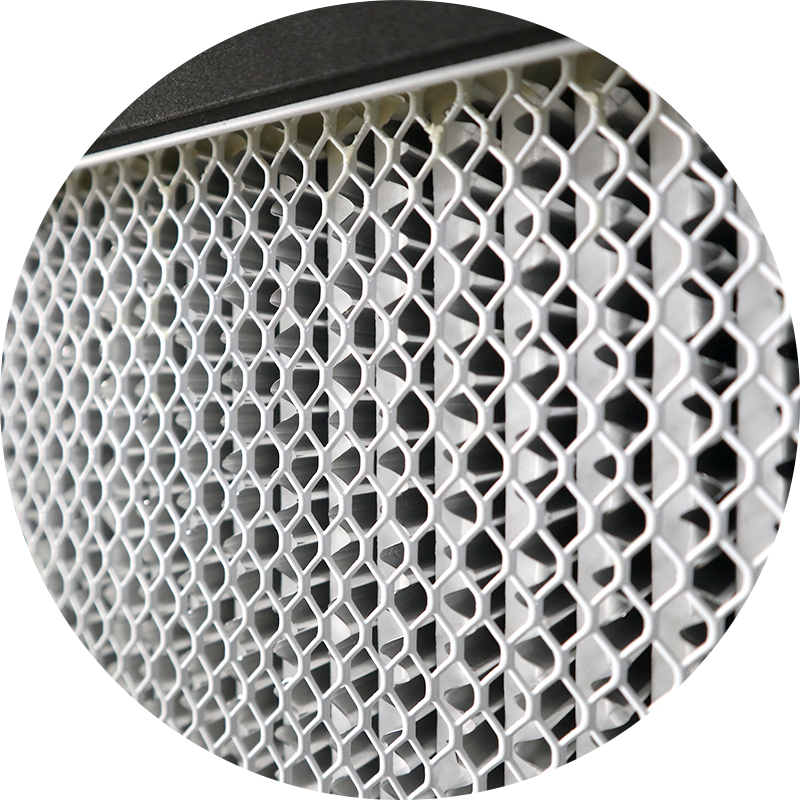

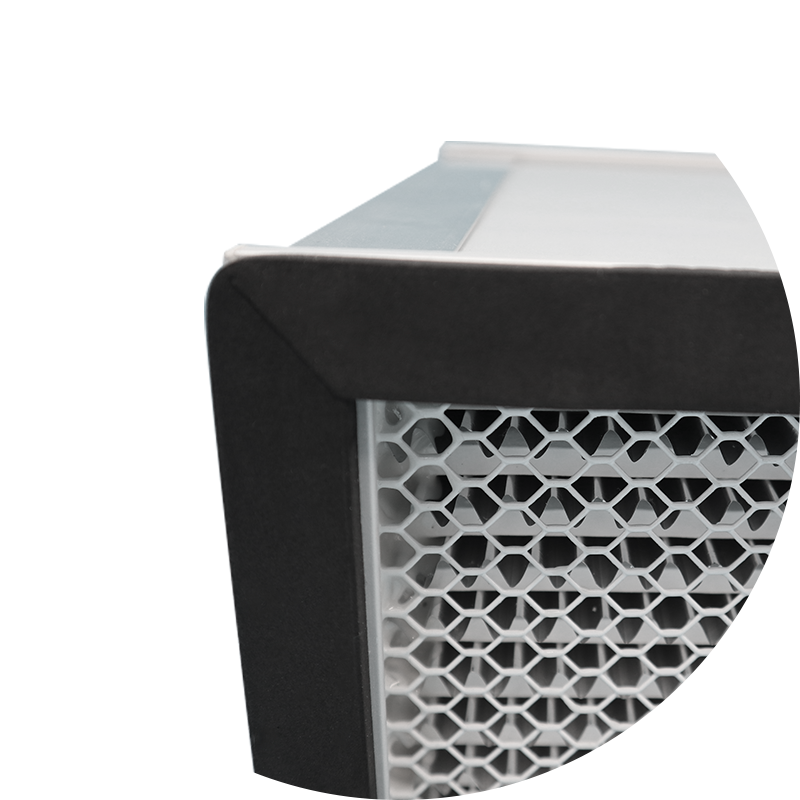

Deep Pleat HEPA Filter

Features
  • Large filtration area and large dust holding capacity;
  • High filtration efficiency and low resistance;
  • Uniform pleat space;
  • Stable air flow;
  • Excellent air tightness;
  • Temperature resistance ≤ 80°C;
  • Humidity resistance (relative humidity) ≤ 100% RH (separated by aluminum foil).
Applications
It is suitable for the final stage of filtration in various ventilation equipment, dust removal equipment, and air supply systems with high requirements for cleanliness.
Send inquiry

Deep Pleat HEPA Filter - Box Type 150D

Model

Size

(mm)

CMH

I.N.P

(Pa)

F.N.P

(Pa)

Filter object

(μm)

EFF.

(%)

Filtration

Class

Filtration Area

(m2)

RT-DP2803-10

305*610*150

500/700

<100/130

<350/500

0.3

85≤E<95

E10

4.25

RT-DP8803-10

610*610*150

1000/1500

<100/130

<350/500

0.3

85≤E<95

E10

7.97

RT-DPB803-10

1220*610*150

2000/2800

<100/130

<350/500

0.3

85≤E<95

E10

15.68

RT-DPB003-10

1220*915*150

2800/3800

<100/130

<350/500

0.3

85≤E<95

E10

23.60

RT-DP2803-11

305*610*150

500/700

<120/150

<350/500

0.3

95≤E<99.5

E11

4.25

RT-DP8803-11

610*610*150

1000/1500

<120/150

<350/500

0.3

95≤E<99.5

E11

7.97

RT-DPB803-11

1220*610*150

2000/2800

<120/150

<350/500

0.3

95≤E<99.5

E11

15.68

RT-DPB003-11

1220*915*150

2800/3800

<120/150

<350/500

0.3

95≤E<99.5

E11

23.60

RT-DP2803-12

305*610*150

500/700

<140/170

<350/500

0.3

99.5≤E<99.95

E12

4.25

RT-DP8803-12

610*610*150

1000/1500

<140/170

<350/500

0.3

99.5≤E<99.95

E12

7.97

RT-DPB803-12

1220*610*150

2000/2800

<140/170

<350/500

0.3

99.5≤E<99.95

E12

15.68

RT-DPB003-12

1220*915*150

2800/3800

<140/170

<350/500

0.3

99.5≤E<99.95

E12

23.60

RT-DP2803-13

305*610*150

500/700

<170/200

<350/500

0.3

99.95≤E<99.995

H13

4.25

RT-DP8803-13

610*610*150

1000/1500

<170/200

<350/500

0.3

99.95≤E<99.995

H13

7.97

RT-DPB803-13

1220*610*150

2000/2800

<170/200

<350/500

0.3

99.95≤E<99.995

H13

15.68

RT-DPB003-13

1220*915*150

2800/3800

<170/200

<350/500

0.3

99.95≤E<99.995

H13

23.60

RT-DP2803-14

305*610*150

500/700

<190/220

<350/500

0.3

99.995≤E<99.9995

H14

4.25

RT-DP8803-14

610*610*150

1000/1500

<190/220

<350/500

0.3

99.995≤E<99.9995

H14

7.97

RT-DPB803-14

1220*610*150

2000/2800

<190/220

<350/500

0.3

99.995≤E<99.9995

H14

15.68

RT-DPB003-14

1220*915*150

2800/3800

<190/220

<350/500

0.3

99.995≤E<99.9995

H14

23.60

Note: Other specifications can be customized according to demand.



Deep Pleat HEPA Filter - Box Type 220D

Model

Size

(mm)

CMH

I.N.P

(Pa)

F.N.P

(Pa)

Filter object

(μm)

EFF.

(%)

Filtration

Class

Filtration Area

(m2)

RT-DP4404-10

484*484*220

1000/1600

<110/150

<350/500

0.3

85≤E<95

E10

8.20

RT-DP2804-10

305*610*220

800/1000

<110/150

<350/500

0.3

85≤E<95

E10

6.76

RT-DP8804-10

610*610*220

1500/2100

<110/150

<350/500

0.3

85≤E<95

E10

12.68

RT-DPB804-10

1220*610*220

2800/4000

<110/150

<350/500

0.3

85≤E<95

E10

24.95

RT-DPB004-10

1220*915*220

3800/5400

<110/150

<350/500

0.3

85≤E<95

E10

37.54

RT-DP4404-11

484*484*220

1000/1600

<140/175

<350/500

0.3

95≤E<99.5

E11

8.20

RT-DP2804-11

305*610*220

800/1000

<140/175

<350/500

0.3

95≤E<99.5

E11

6.76

RT-DP8804-11

610*610*220

1500/2100

<140/175

<350/500

0.3

95≤E<99.5

E11

12.68

RT-DPB804-11

1220*610*220

2800/4000

<140/175

<350/500

0.3

95≤E<99.5

E11

24.95

RT-DPB004-11

1220*915*220

3800/5400

<140/175

<350/500

0.3

95≤E<99.5

E11

37.54

RT-DP4404-12

484*484*220

1000/1600

<160/190

<350/500

0.3

99.5≤E<99.95

E12

8.20

RT-DP2804-12

305*610*220

800/1000

<160/190

<350/500

0.3

99.5≤E<99.95

E12

6.76

RT-DP8804-12

610*610*220

1500/2100

<160/190

<350/500

0.3

99.5≤E<99.95

E12

12.68

RT-DPB804-12

1220*610*220

2800/4000

<160/190

<350/500

0.3

99.5≤E<99.95

E12

24.95

RT-DPB004-12

1220*915*220

3800/5400

<160/190

<350/500

0.3

99.5≤E<99.95

E12

37.54

RT-DP4404-13

484*484*220

1000/1600

<180/220

<350/500

0.3

99.95≤E<99.995

H13

8.20

RT-DP2804-13

305*610*220

800/1000

<180/220

<350/500

0.3

99.95≤E<99.995

H13

6.76

RT-DP8804-13

610*610*220

1500/2100

<180/220

<350/500

0.3

99.95≤E<99.995

H13

12.68

RT-DPB804-13

1220*610*220

2800/4000

<180/220

<350/500

0.3

99.95≤E<99.995

H13

24.95

RT-DPB004-13

1220*915*220

3800/5400

<180/220

<350/500

0.3

99.95≤E<99.995

H13

37.54

RT-DP4404-14

484*484*220

1000/1600

<200/240

<350/500

0.3

99.995≤E<99.9995

H14

8.20

RT-DP2804-14

305*610*220

800/1000

<200/240

<350/500

0.3

99.995≤E<99.9995

H14

6.76

RT-DP8804-14

610*610*220

1500/2100

<200/240

<350/500

0.3

99.995≤E<99.9995

H14

12.68

RT-DPB804-14

1220*610*220

2800/4000

<200/240

<350/500

0.3

99.995≤E<99.9995

H14

24.95

RT-DPB004-14

1220*915*220

3800/5400

<200/240

<350/500

0.3

99.995≤E<99.9995

H14

37.54

Note: Other specifications can be customized according to demand.



Deep Pleat HEPA Filter - Box Type 292D

Model

Size

(mm)

CMH

I.N.P

(Pa)

F.N.P

(Pa)

Filter object

(μm)

EFF.

(%)

Filtration

Class

Filtration Area

(m2)

RT-DP2805-10

305*610*292

900/1300

<130/160

<350/500

0.3

85≤E<95

E10

9.55

RT-DP8805-10

610*610*292

1800/2600

<130/160

<350/500

0.3

85≤E<95

E10

17.90

RT-DPB805-10

1220*610*292

3400/4800

<130/160

<350/500

0.3

85≤E<95

E10

35.21

RT-DPB005-10

1220*915*292

4200/6800

<130/160

<350/500

0.3

85≤E<95

E10

52.99

RT-DP2805-11

305*610*292

900/1300

<150/175

<350/500

0.3

95≤E<99.5

E11

9.55

RT-DP8805-11

610*610*292

1800/2600

<150/175

<350/500

0.3

95≤E<99.5

E11

17.90

RT-DPB805-11

1220*610*292

3400/4800

<150/175

<350/500

0.3

95≤E<99.5

E11

35.21

RT-DPB005-11

1220*915*292

4200/6800

<150/175

<350/500

0.3

95≤E<99.5

E11

52.99

RT-DP2805-12

305*610*292

900/1300

<175/200

<350/500

0.3

99.5≤E<99.95

E12

9.55

RT-DP8805-12

610*610*292

1800/2600

<175/200

<350/500

0.3

99.5≤E<99.95

E12

17.90

RT-DPB805-12

1220*610*292

3400/4800

<175/200

<350/500

0.3

99.5≤E<99.95

E12

35.21

RT-DPB005-12

1220*915*292

4200/6800

<175/200

<350/500

0.3

99.5≤E<99.95

E12

52.99

RT-DP2805-13

305*610*292

900/1300

<210/240

<350/500

0.3

99.95≤E<99.995

H13

9.55

RT-DP8805-13

610*610*292

1800/2600

<210/240

<350/500

0.3

99.95≤E<99.995

H13

17.90

RT-DPB805-13

1220*610*292

3400/4800

<210/240

<350/500

0.3

99.95≤E<99.995

H13

35.21

RT-DPB005-13

1220*915*292

4200/6800

<210/240

<350/500

0.3

99.95≤E<99.995

H13

52.99

RT-DP2805-14

305*610*292

900/1300

<230/265

<350/500

0.3

99.995≤E<99.9995

H14

9.55

RT-DP8805-14

610*610*292

1800/2600

<230/26

<350/500

0.3

99.995≤E<99.9995

H14

17.90

RT-DPB805-14

1220*610*292

3400/4800

<230/26

<350/500

0.3

99.995≤E<99.9995

H14

35.21

RT-DPB005-14

1220*915*292

4200/6800

<230/26

<350/500

0.3

99.995≤E<99.9995

H14

52.99

Note: Other specifications can be customized according to demand.
