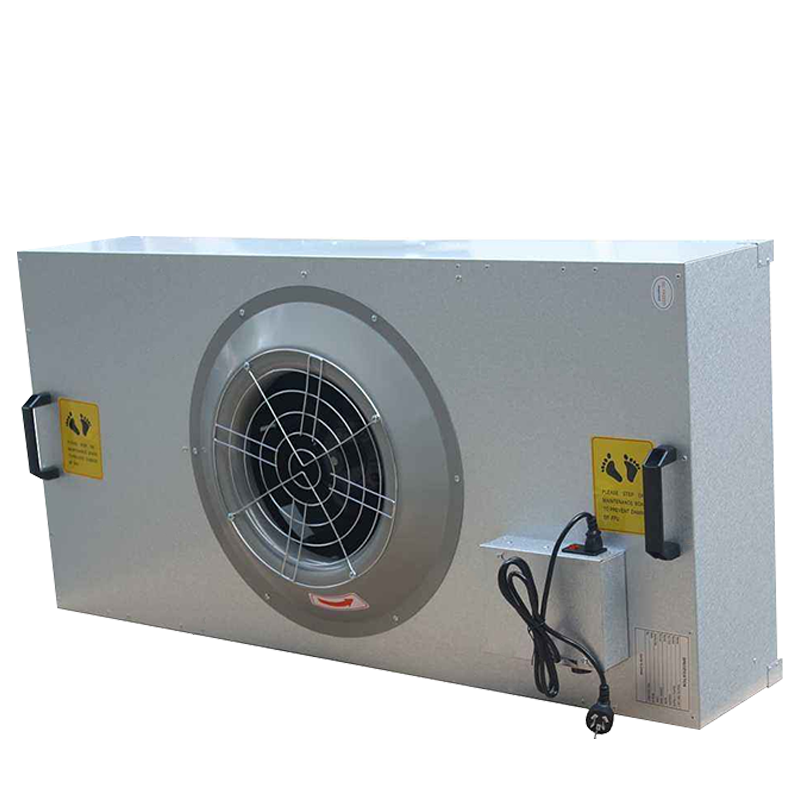

FFU

Features
  • Common installation structure, with a variety of installation design options;
  • Standard communication format, compatible with other types of control equipment;
  • Can be single machine control, remote control, customer integrated control;
  • Can be matched with a variety of filter options, high efficiency and low resistance.
Applications
Fan Filtration Unit (FFU), is a combination of fan and high efficiency filter (HEPA/ULPA) airflow circulation and filtration clean equipment for clean rooms, mainly used to filter dust particles from the harmful air present in the air of the workplace, can provide clean air in clean rooms such as semiconductor and liquid crystal manufacturing industries, installed in the ceiling, in line with the needs of large clean rooms with hundreds of thousands of units.
Send inquiry

model

External dimensions

(mm)

Power supply

Maximum use power

Operating

capacity



Maximum overall efficiency

Harmonics (THDI)

Motor

Insulation grade

Waterproof and dustproof grade

Motor Output

Fan

(Aluminum alloy)

Case

Standard type 2′ x 4′

1175x575x265

1Φ - 220/277V - 50/60HZ

150W

15-19CMM

@TSP250Pa

> 51%

<5%

SF-305I100-T**

E

Ip30

90W-150W

Φ305

Galvalume

Standard type 4′ x 4′

1175x1175x265

1Φ - 220/277V - 50/60HZ

375W

30-39CMM

@TSP270Pa

> 58%

<5%

SF-458S101-T**

E

Ip54

90W-150W

Φ448

Galval


model

External dimensions

Filter size

Frame material

Filter efficiency

(0.3μm)

Air volume

(0.45m/s)

Power supply

Maximum use power

Motor type

Impeller material

Handle

Thin type 2′ x 2′

575x575x160

mm

570x570x55

mm

Cold plate paint / Galvalume

99.995%

500m3/h

AC - 220V - 50Hz

200w

BLDC brushless fan

Aluminum alloy

Composite chemical fiber (insulating type)

Thin type 2′ x 4′

1175x575x115

mm

1170x570x55

mm

Cold plate paint / Galvalume

99.995%

1000m3/h

AC - 220V - 50Hz

200w

BLDC brushless fan

Aluminum alloy

Composite chemical fiber (insulating type)

Thin type 3′ x 4′

1175x875x115

mm

1170x870x55

mm

Cold plate paint / Galvalume

99.995%

1500m3/h

AC - 220V - 50Hz

200w

BLDC brushless fan

Aluminum alloy

Composite chemical fiber (insulating type)

Thin type 4′ x 4′

1175x1175x115

mm

1170x1170x55

mm

Cold plate paint / Galvalume

99.995%

1000m3/h

AC - 220V - 50Hz

200w

BLDC brushless fan

Aluminum alloy

Composite chemical fiber (insulating type)
