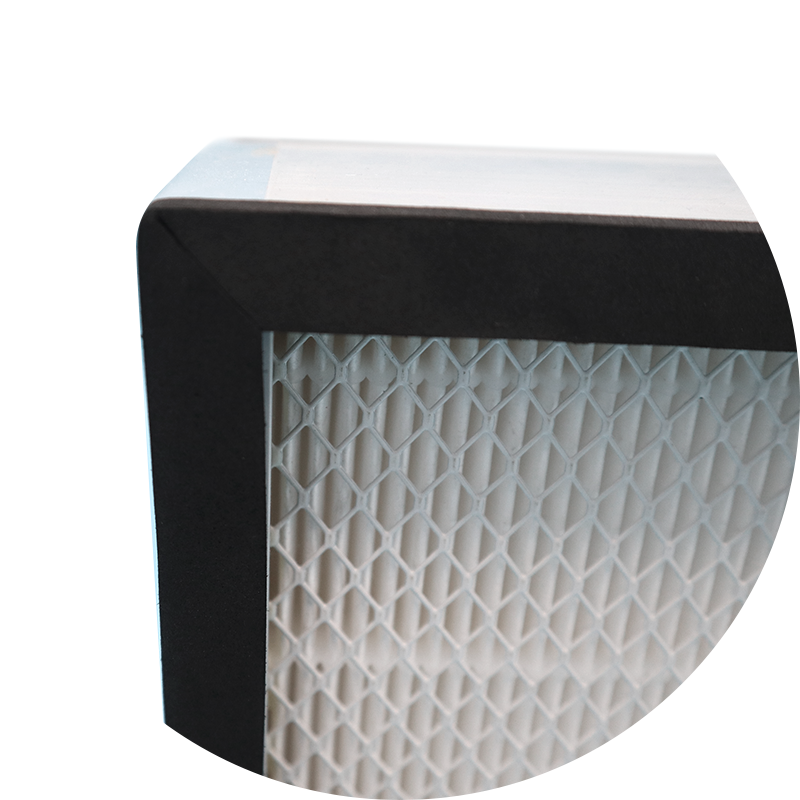

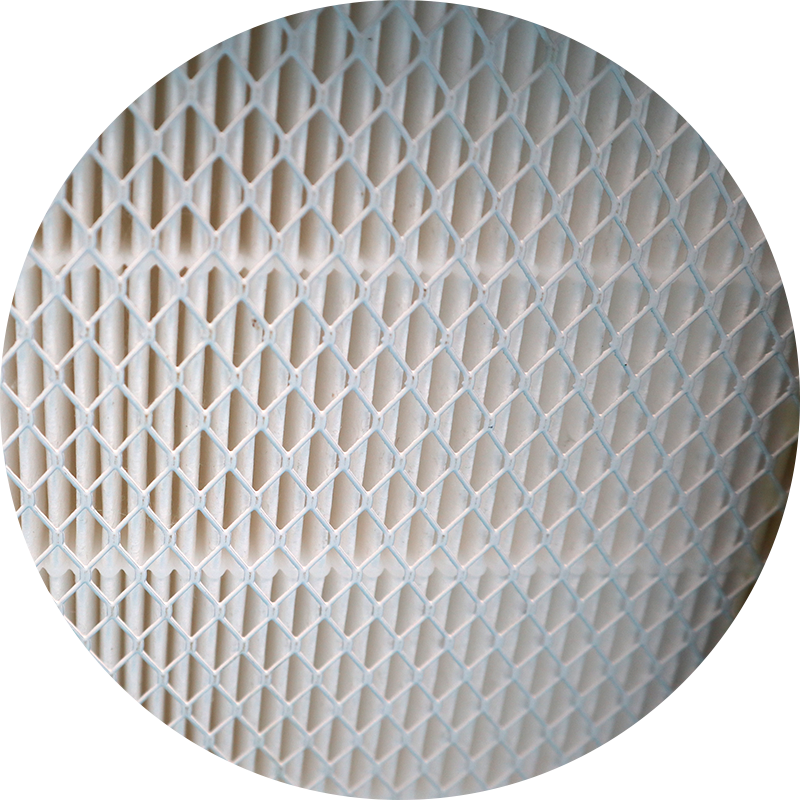

Mini Pleat HEPA Filter

Features
  • Large specific surface area, high dust capacity;
  • Unitform pleat spacing;
  • Stable air flow;
  • High filtration efficiency;
  • Low resistance;
  • Water and moisture resistance;
  • Temperature resistance ≤ 80 ℃;
  • Humidity resistance (relative humidity) ≤ 100% RH.
Applications
It is suitable for end filtration in ventilation equipment, dust removal equipment and air supply system with high cleanliness level requirements.
Send inquiry


Mini Pleat HEPA Filter - Box Type 50D

Model

Size

(mm)

CMH

I.N.P

(Pa)

F.N.P

(Pa)

Filter

object

(μm)

EFF.

(%)

Filtration

Class

Filtration

Area

(m2)

RT-MP2850-10

305*610*50

350/700

<30/70

<300/500

0.3

85≤E<95

E10

3.85

RT-MP8850-10

610*610*50

650/1300

<30/70

<300/500

0.3

85≤E<95

E10

7.44

RT-MPB850-10

1220*610*50

1200/2400

<30/70

<300/500

0.3

85≤E<95

E10

14.59

RT-MP2850-11

305*610*50

350/700

<55/120

<300/500

0.3

95≤E<99.5

E11

3.85

RT-MP8850-11

610*610*50

650/1300

<55/120

<300/500

0.3

95≤E<99.5

E11

7.44

RT-MPB850-11

1220*610*50

1200/2400

<55/120

<300/500

0.3

95≤E<99.5

E11

14.59

RT-MP2850-12

305*610*50

350/700

<75/180

<300/500

0.3

99.5≤E<99.95

E12

3.85

RT-MP8850-12

610*610*50

650/1300

<75/180

<300/500

0.3

99.5≤E<99.95

E12

7.44

RT-MPB850-12

1220*610*50

1200/2400

<75/180

<300/500

0.3

99.5≤E<99.95

E12

14.59

RT-MP2850-13

305*610*50

350/700

<100/205

<300/500

0.3

99.95≤E<99.995

H13

3.85

RT-MP8850-13

610*610*50

650/1300

<100/205

<300/500

0.3

99.95≤E<99.995

H13

7.44

RT-MPB850-13

1220*610*50

1200/2400

<100/205

<300/500

0.3

99.95≤E<99.995

H13

14.59

RT-MP2850-14

305*610*50

350/700

<110/220

<300/500

0.3

99.995≤E<99.9995

H14

3.85

RT-MP8850-14

610*610*50

650/1300

<110/220

<300/500

0.3

99.995≤E<99.9995

H14

7.44

RT-MPB850-14

1220*610*50

1200/2400

<110/220

<300/500

0.3

99.995≤E<99.9995

H14

14.59

RT-MP2850-15

305*610*50

350/700

<160/295

<300/500

0.12

99.9995≤E<99.9997

U15

3.85

RT-MP8850-15

610*610*50

650/1300

<160/295

<300/500

0.12

99.9995≤E<99.9997

U15

7.44

RT-MPB850-15

1220*610*50

1200/2400

<160/295

<300/500

0.12

99.9995≤E<99.9997

U15

14.59

RT-MP2850-16

305*610*50

350/700

<175/320

<300/500

0.12

99.9997≤E<99.99997

U16

3.85

RT-MP8850-16

610*610*50

650/1300

<175/320

<300/500

0.12

99.9997≤E<99.99997

U16

7.44

RT-MPB850-16

1220*610*50

1200/2400

<175/320

<300/500

0.12

99.9997≤E<99.99997

U16

14.59

Note: Other specifications can be customized according to requirements.




Mini Pleat HEPA Filter - Box Type 69D

Model

Size

(mm)

CMH

I.N.P

(Pa)

F.N.P

(Pa)

Filter object

(μm)

EFF.

(%)

Filtration

Class

Filtration Area

(m2)

RT-MP2869-10

305*610*69

500/1000

<30/70

<300/500

0.3

85≤E<95

E10

5.94

RT-MP8869-10

610*610*69

900/1800

<30/70

<300/500

0.3

85≤E<95

E10

11.48

RT-MPB869-10

1220*610*69

1700/3400

<30/70

<300/500

0.3

85≤E<95

E10

22.51

RT-MP2869-11

305*610*69

500/1000

<55/120

<300/500

0.3

95≤E<99.5

E11

5.94

RT-MP8869-11

610*610*69

900/1800

<55/120

<300/500

0.3

95≤E<99.5

E11

11.48

RT-MPB869-11

1220*610*69

1700/3400

<55/120

<300/500

0.3

95≤E<99.5

E11

22.51

RT-MP2869-12

305*610*69

500/1000

<75/180

<300/500

0.3

99.5≤E<99.95

E12

5.94

RT-MP8869-12

610*610*69

900/1800

<75/180

<300/500

0.3

99.5≤E<99.95

E12

11.48

RT-MPB869-12

1220*610*69

1700/3400

<75/180

<300/500

0.3

99.5≤E<99.95

E12

22.51

RT-MP2869-13

305*610*69

500/1000

<100/205

<300/500

0.3

99.95≤E<99.995

H13

5.94

RT-MP8869-13

610*610*69

900/1800

<100/205

<300/500

0.3

99.95≤E<99.995

H13

11.48

RT-MPB869-13

1220*610*69

1700/3400

<100/205

<300/500

0.3

99.95≤E<99.995

H13

22.51

RT-MP2869-14

305*610*69

500/1000

<110/220

<300/500

0.3

99.995≤E<99.9995

H14

5.94

RT-MP8869-14

610*610*69

900/1800

<110/220

<300/500

0.3

99.995≤E<99.9995

H14

11.48

RT-MPB869-14

1220*610*69

1700/3400

<110/220

<300/500

0.3

99.995≤E<99.9995

H14

22.51

RT-MP2869-15

305*610*69

500/1000

<160/295

<300/500

0.12

99.9995≤E<99.9997

U15

5.94

RT-MP8869-15

610*610*69

900/1800

<160/295

<300/500

0.12

99.9995≤E<99.9997

U15

11.48

RT-MPB869-15

1220*610*69

1700/3400

<160/295

<300/500

0.12

99.9995≤E<99.9997

U15

22.51

RT-MP2869-16

305*610*69

500/1000

<175/320

<300/500

0.12

99.9997≤E<99.99997

U16

5.94

RT-MP8869-16

610*610*69

900/1800

<175/320

<300/500

0.12

99.9997≤E<99.99997

U16

11.48

RT-MPB869-16

1220*610*69

1700/3400

<175/320

<300/500

0.12

99.9997≤E<99.99997

U16

22.51

Note: Other specifications can be customized according to requirements.



Mini Pleat HEPA Filter - Box Type 80D

Model

Size

(mm)

CMH

I.N.P

(Pa)

F.N.P

(Pa)

Filter object

(μm)

EFF.

(%)

Filtration

Class

Filtration Area

(m2)

RT-MP2880-10

305*610*80

600/1200

<30/70

<300/500

0.3

85≤E<95

E10

7.15

RT-MP8880-10

610*610*80

1100/1200

<30/70

<300/500

0.3

85≤E<95

E10

13.82

RT-MPB880-10

1220*610*80

2000/2200

<30/70

<300/500

0.3

85≤E<95

E10

27.09

RT-MP2880-11

305*610*80

600/1200

<55/120

<300/500

0.3

95≤E<99.5

E11

7.15

RT-MP8880-11

610*610*80

1100/1200

<55/120

<300/500

0.3

95≤E<99.5

E11

13.82

RT-MPB880-11

1220*610*80

2000/2200

<55/120

<300/500

0.3

95≤E<99.5

E11

27.09

RT-MP2880-12

305*610*80

600/1200

<75/180

<300/500

0.3

99.5≤E<99.95

E12

7.15

RT-MP8880-12

610*610*80

1100/1200

<75/180

<300/500

0.3

99.5≤E<99.95

E12

13.82

RT-MPB880-12

1220*610*80

2000/2200

<75/180

<300/500

0.3

99.5≤E<99.95

E12

27.09

RT-MP2880-13

305*610*80

600/1200

<100/205

<300/500

0.3

99.95≤E<99.995

H13

7.15

RT-MP8880-13

610*610*80

1100/1200

<100/205

<300/500

0.3

99.95≤E<99.995

H13

13.82

RT-MPB880-13

1220*610*80

2000/2200

<100/205

<300/500

0.3

99.95≤E<99.995

H13

27.09

RT-MP2880-14

305*610*80

600/1200

<110/220

<300/500

0.3

99.995≤E<99.9995

H14

7.15

RT-MP8880-14

610*610*80

1100/1200

<110/220

<300/500

0.3

99.995≤E<99.9995

H14

13.82

RT-MPB880-14

1220*610*80

2000/2200

<110/220

<300/500

0.3

99.995≤E<99.9995

H14

27.09

RT-MP2880-15

305*610*80

600/1200

<160/295

<300/500

0.12

99.9995≤E<99.9997

U15

7.15

RT-MP8880-15

610*610*80

1100/1200

<160/295

<300/500

0.12

99.9995≤E<99.9997

U15

13.82

RT-MPB880-15

1220*610*80

2000/2200

<160/295

<300/500

0.12

99.9995≤E<99.9997

U15

27.09

RT-MP2880-16

305*610*80

600/1200

<175/320

<300/500

0.12

99.9997≤E<99.99997

U16

7.15

RT-MP8880-16

610*610*80

1100/1200

<175/320

<300/500

0.12

99.9997≤E<99.99997

U16

13.82

RT-MP2880-10

1220*610*80

2000/2200

<175/320

<300/500

0.12

99.9997≤E<99.99997

U16

27.09

Note: Other specifications can be customized according to requirements.
