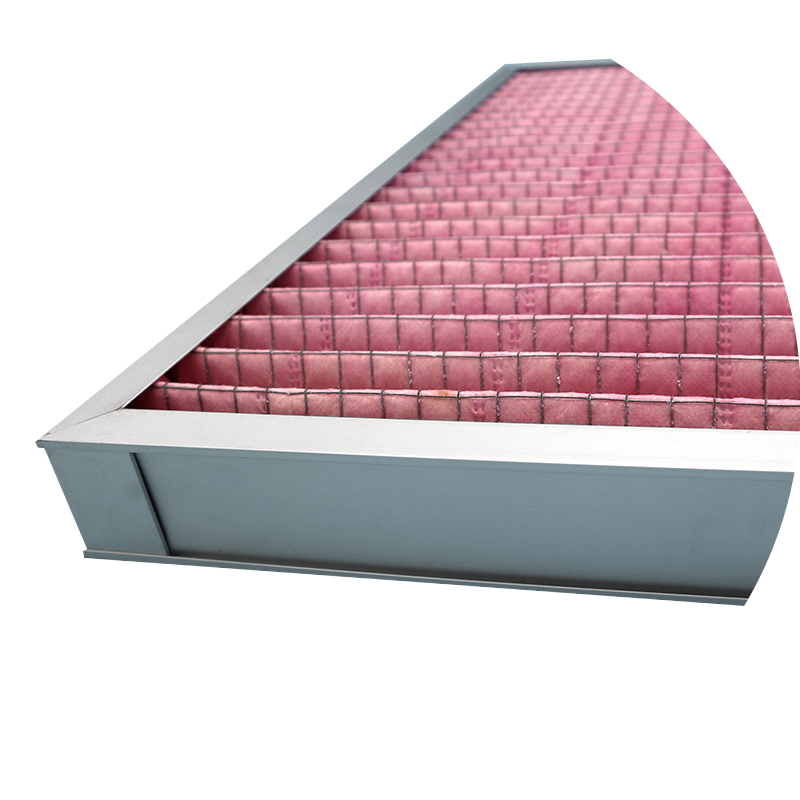

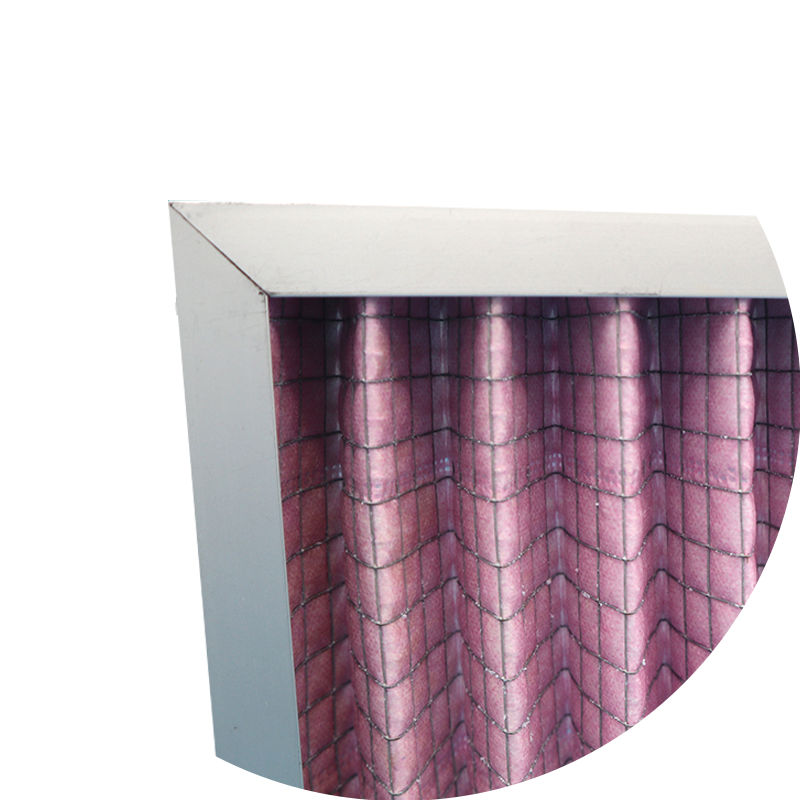

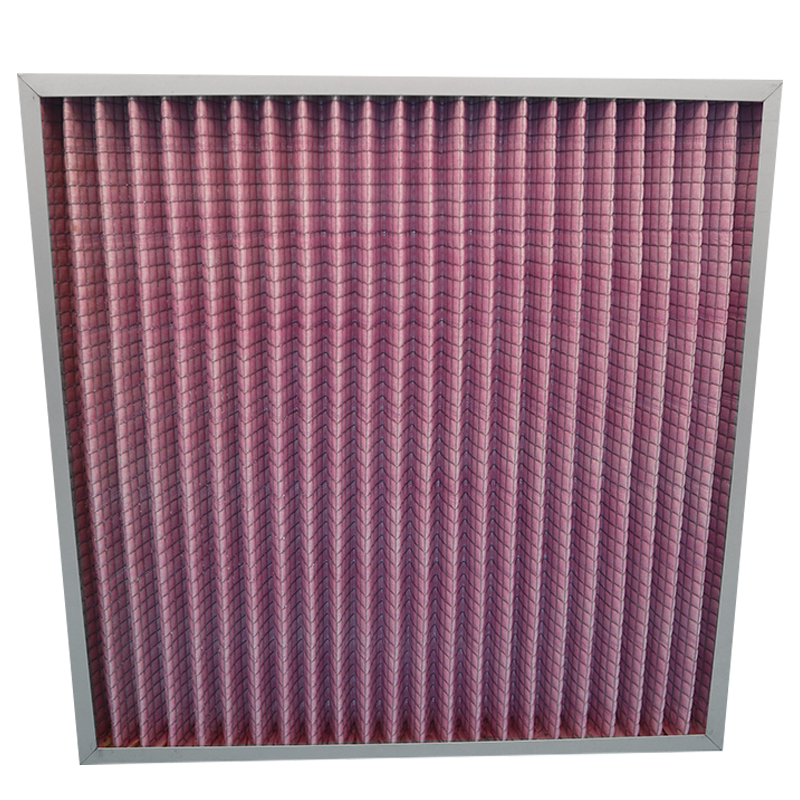

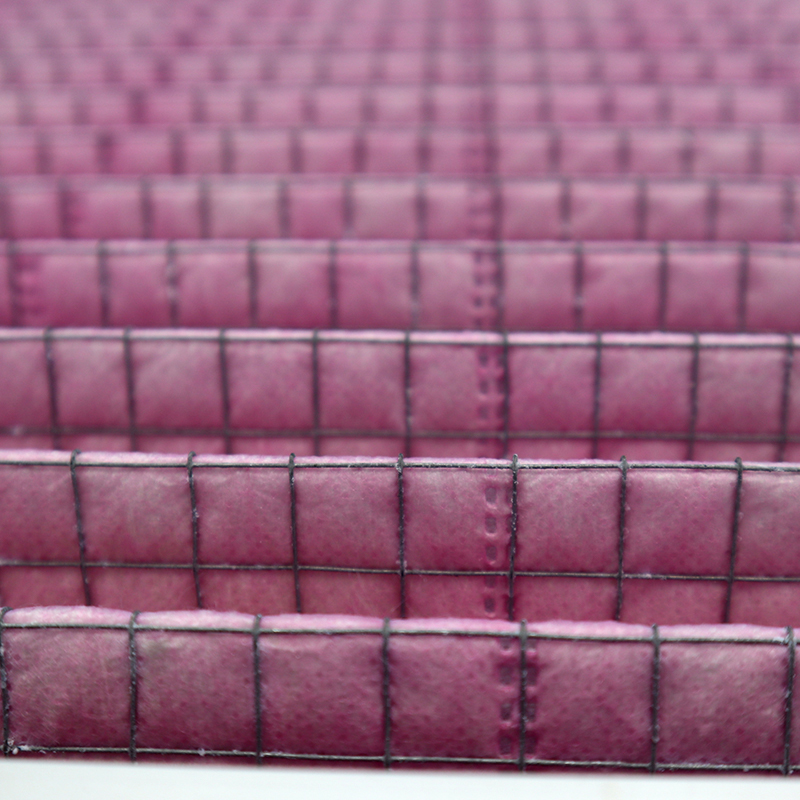

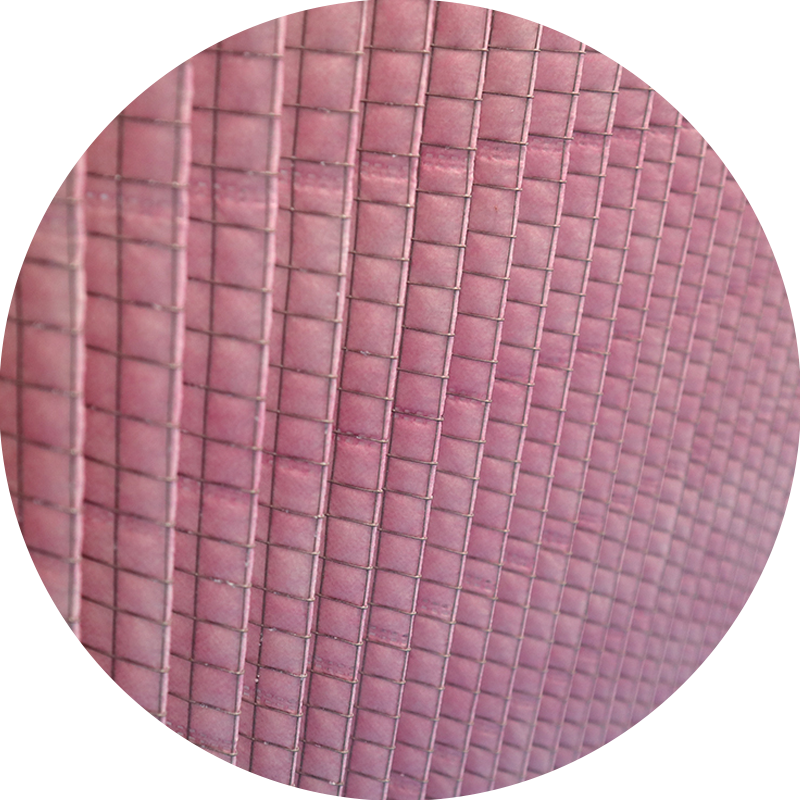

Medium Efficiency Pleated Filter

Features
  • High dust holding capacity;
  • High filtration efficiency;
  • Large filter area;
  • Large airflow and low pressure drop;
  • Strong structure and beautiful appearance.
Applications
Apply to primary or secondary filtration of various air-conditioning ventilation systems and dust removal systems.
Send inquiry

Dimension (mm)

Rated airflow (m³/h)

Initial pressure drop (Pa)

Final pressure drop (Pa)

Filter object (μm)

Filtration efficiency (%)

Filter class

595*595*46

1500/3000

<30/55

<250

≥1

45%

F5

495*495*46

1000/2000

<30/55

<250

≥1

45%

F5

295*595*46

750/1500

<30/55

<250

≥1

45%

F5

595*595*46

1500/3000

<40/70

<250

≥1

65%

F6

495*495*46

1000/2000

<40/70

<250

≥1

65%

F6

295*595*46

750/1500

<40/70

<250

≥1

65%

F6

595*595*46

1500/3000

<50/80

<250

≥1

85%

F7

495*495*46

1000/2000

<50/80

<250

≥1

85%

F7

295*595*46

750/1500

<50/80

<250

≥1

85%

F7

595*595*46

1500/3000

<55/90

<250

≥1

90%

F8

495*495*46

1000/2000

<55/90

<250

≥1

90%

F8

295*595*46

750/1500

<55/90

<250

≥1

90%

F8

595*595*46

1500/3000

<60/95

<250

≥1

95%

F9

495*495*46

1000/2000

<60/95

<250

≥1

95%

F9

295*595*46

750/1500

<60/95

<250

≥1

95%

F9
