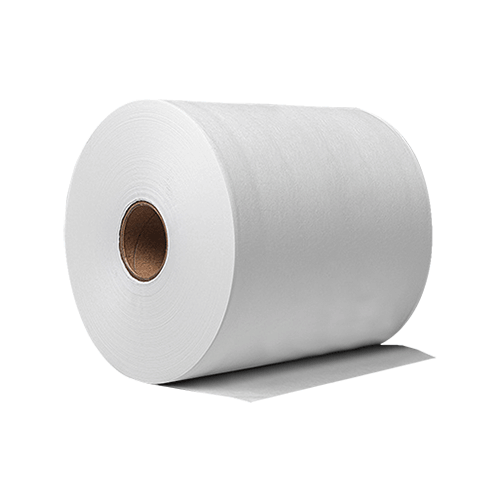

PP Spunbond non-woven roll media

Features
  • Materials: polypropylene (PP) and polyester fiber (PET)
  • Multi layer non-woven fabric composite, three-dimensional network structure, to meet the layered filtration;
  • High dust capacity and long service life;
  • Low initial resistance and high efficiency;
  • The material is non-toxic, tasteless, environmentally friendly and completely disposable.
Applications
It is mainly used as raw materials for bag filter and plate filter in general ventilation system.
Send inquiry
Main composition

Polypropylene (PP)

Instant temperature resistance100℃

Temperature resistance

≤80℃

Humidity resistance ≤100%


Model

Weight

(g/m²)

Thickness

(mm)

Tensile Strength(N/5cm

Elongation(%

Tear strengthN

Breathability

(cm3/cm2.sn)

Penetrability

(s)

Hygroscopicity

(g/sq.m)

MD

(Vertical)

CD

(Horizontal)

MD

(Vertical)

CD

(Horizontal)

MD

(Vertical)

CD

(Horizontal)

RT-NW12

12

0.12

24

19

54

59

18

20

185

2.5<x<3

<0.2

RT-NW15

15

0.15

31

23

61

67

20

22

175

2.5<x<3

<0.2

RT-NW18

18

0.18

35

27

65

71

22

25

165

2.5<x<3

<0.2

RT-NW20

20

0.20

40

33

68

75

30

30

160

2.5<x<3

<0.2

RT-NW22

22

0.22

45

38

70

76

32

33

155

2.5<x<3

<0.2

RT-NW25

25

0.24

52

54

73

78

35

38

150

2.5<x<3

<0.2

RT-NW30

30

0.28

61

45

77

81

38

43

145

2.5<x<3

<0.2

Remarks: The MOQ of colored non-woven fabrics should be at least 1 ton.
