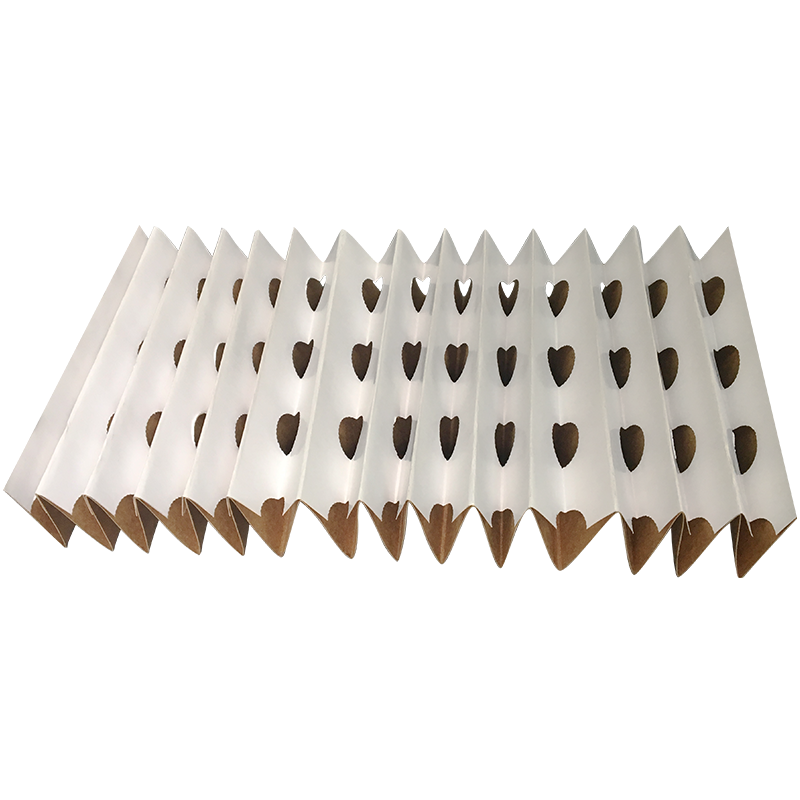

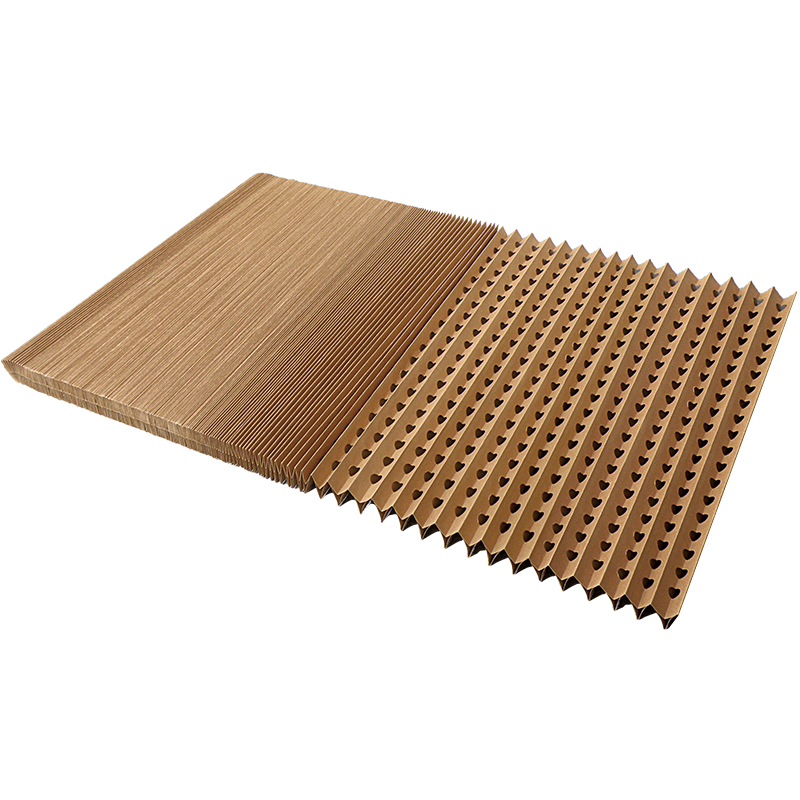

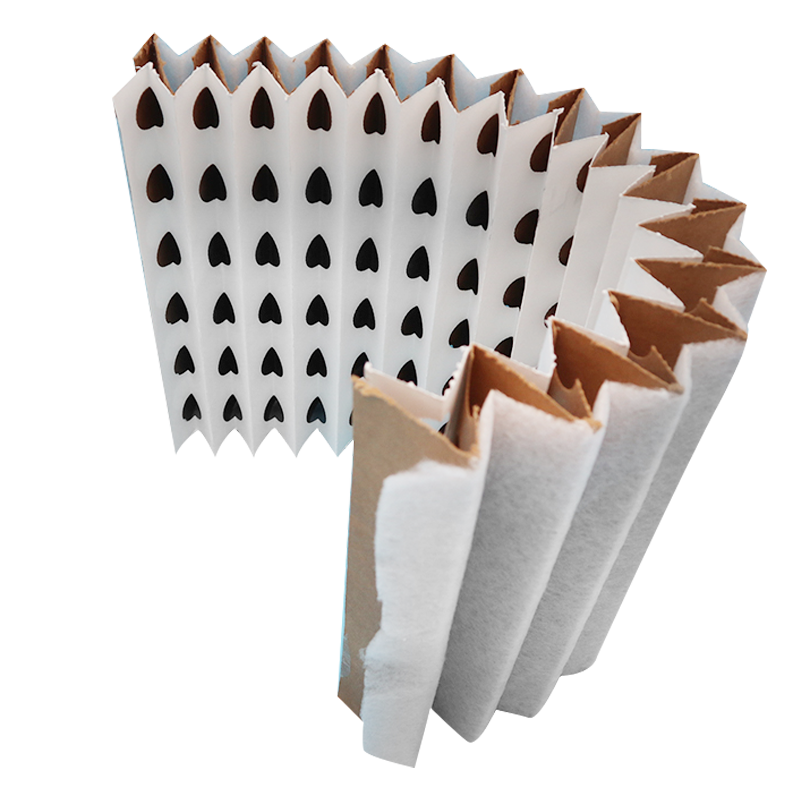

V-Type Paint Filter Paper

Features
  • Whirlpool airflow guide design, high filtering efficiency;
  • V-shaped depth bearing, high dust holding capacity and low pressure;
  • Simple installation;
  • Simply recycle paint particles and dust particles;
  • Reproducible paper, environmental and high efficiency;
  • Long service life and low replacement frequency.
Applications
It is used in the discharge and filtration of paint mist or industrial oil mist in painting systems.
Send inquiry

  Main Material

  Excellent double layer kraft paper

  Average weight efficiency

  ≥90%

  Filter object

  Paint particles and dust particles

  Stretch folding distance

  50mm

  Aperture

  25mm

  Pitch-row

  20mm

  Final resistance

  150Pa(suggestion)

  Flame retardant grade

  K1(DIN 53438)

  Temperature resistance

  ≤80℃

  Temp. short peak

  ≤100℃

  Moisture resistance(relative humidity)

  ≤80%RH

Model

Length(m)

Width(m)

Thickness(mm)

Rated air velocity( m/s)

Work time(h)

Efficiency

Adsorptivity ability(kg/m²)

Remark

RT-V60-1

10

0.75m/0.9m/1m/1.2m

60

0.5-1

240-250

85%

13

without synthetic

10

1.25m

65

0.5-1

240-250

85%

13

without synthetic

RT-V60-2

10

0.75m/0.9m/1m/1.2m

60

0.5-1

240-440

93%

16

with synthetic

10

1.25m

65

0.5-1

240-440

93%

16

synthetic

RT-V60-3

10

0.75m/0.9m/1m/1.2m

60

0.5-1

180-220

93%

18

paper tape

RT-V60-4

10

1.25m

65

0.7-1.4

180-220

93%

27

flame retardant
