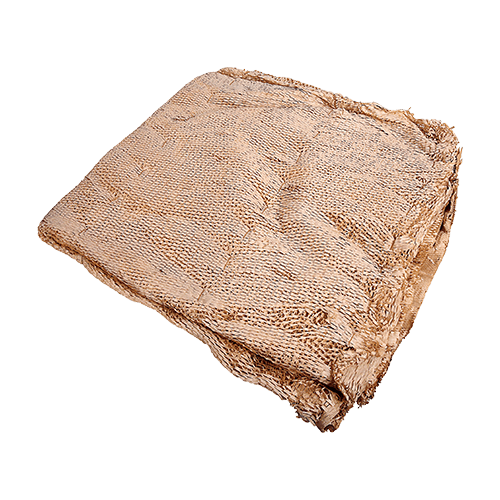

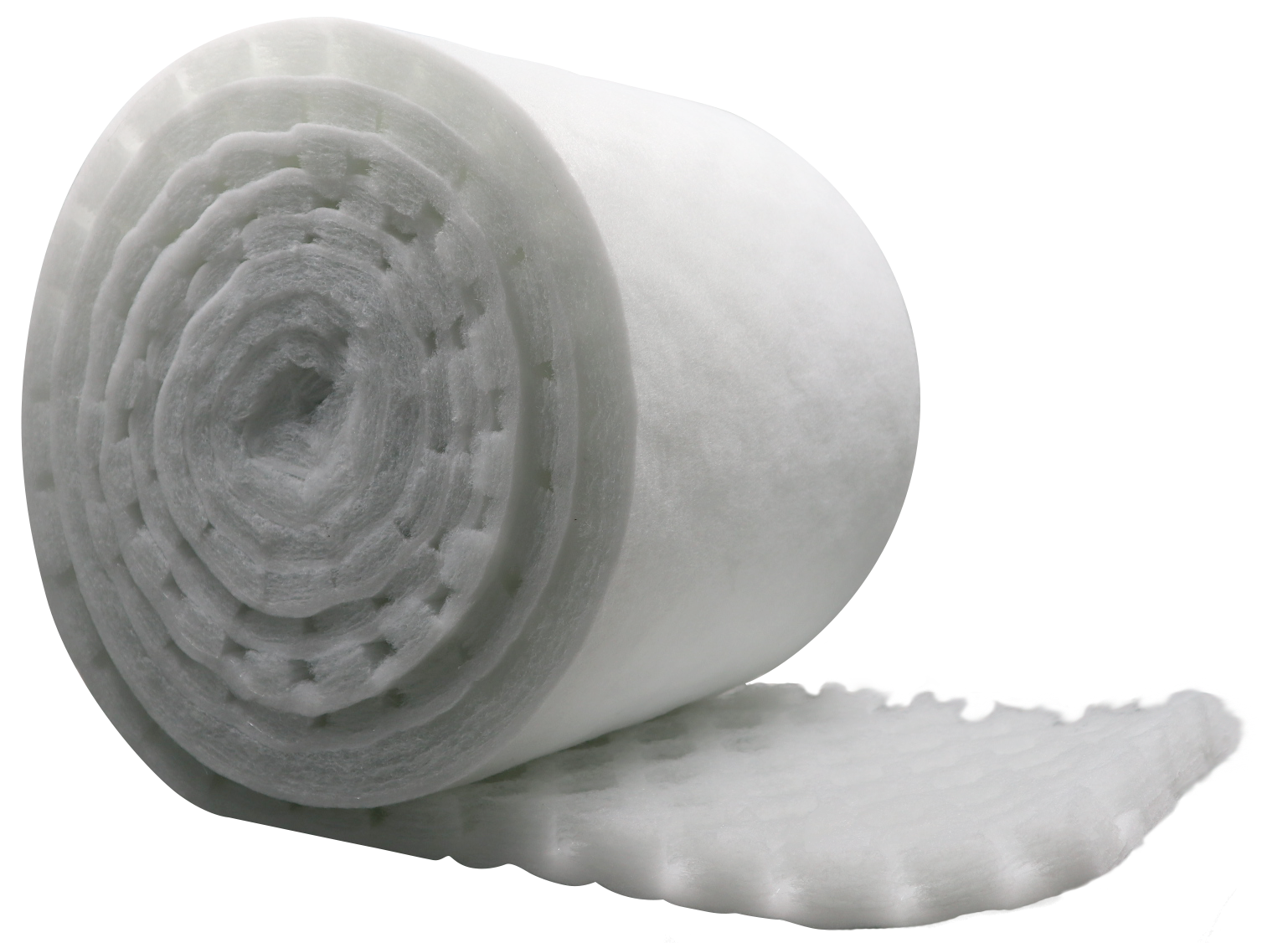

DPA Paint Mist Filter Media

Features
  • Good filtration performance, which can capture paint mist particles efficiently as well as Effectively filter small size dust particles;
  • Wide capturing capacity;
  • Long service life;
  • Increased filtration area;
  • Good resistance to moisture;
  • High tensile strength and high corrosion resistance;
  • 3-5 times longer service life than other general paint mist filtering materials;
  • One of the best paint mist filtration and paint mist capture materials available;
  • Silicone free.
Applications
For the filtration of paint mist or industrial oil mist emissions from painting systems.
Send inquiry
Main components

Coarse fiber perforated (PET) + chemical fiber mesh + fine fiber (PET)

Flame retardant gradeF1(DIN 53438), B1(GB/T 17591-2006)

Filtration Class

G3, G4(EN779)

Temperature resistance≤100℃

Filter object

≥5μm coarse dust and foreign matter (paint mist particles)

Instantaneous temperature resistance120℃

Average weighting efficiency

95%(ASHRAE52.1-1992)

Humidity resistance (relative humidity)≤100%


Model

Thickness

(mm)

Weight

(g/m²)

I.N.P

(Pa)

F.N.P

(Pa)

Rated

air velocity

(m/s)

CMH

Paint capacity

(kg/m2)

Capture

efficiency

RT-DPA30

30

300

25

300

0.6

2200

18

>90%

RT-DPA40

40

400

30

300

0.6

2200

25

>95%

RT-DPA50

50

500

35

300

0.6

2200

30

>98%

Note: Other specifications can be made for customers.
